The D-160 and D-265 Nozzle Tips are rugged, maintenance free two piece designs built with the same simplicity and durability as the rest of the Delta line. Each stacks seamlessly onto an integrated smooth bore shut-off (7/8" for the D-160, 1 1/8" for the D-265), or sits on top of a full shut-off with a threaded tip, giving you flexibility for your preferred setup. To get the most out of the D-160 on a full 1 1/2" or 1 3/8" shut-off, pair it with the S-160, a traditionally designed 7/8" smooth bore tip. Its tapered profile reduces turbulence for a smoother, more effective stream, and the D-160 can be quickly removed whenever reach matters more than coverage, giving you a longer, more focused stream on demand.

Dependable Performance

Built for crews who want dependable performance without the upkeep, the Delta nozzle tip family brings simplicity and flexibility to every attack line. The D-160 and D-265 share the same rugged, maintenance free two piece construction found throughout the Delta line, so there are no moving parts to service and nothing to slow you down on scene. Stack them onto an integrated smooth bore shut-off for a clean, compact setup, or run them on top of a full shut-off with a threaded tip when you want more options. Add the S-160 to the D-160 and you gain a tapered 7/8" smooth bore that delivers a smoother, more effective stream, with the freedom to remove the D-160 in seconds whenever reach matters more than coverage. One system, multiple configurations, ready for whatever the fire demands.

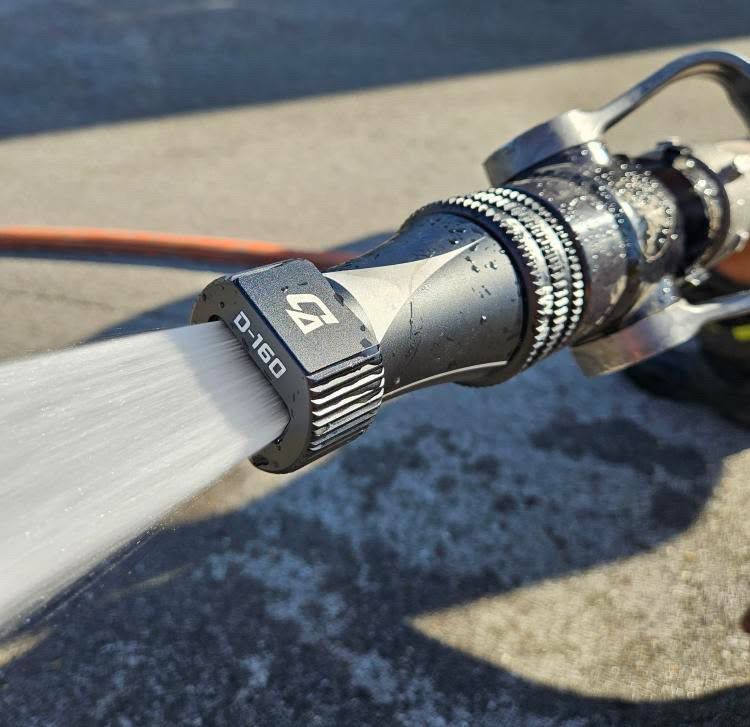

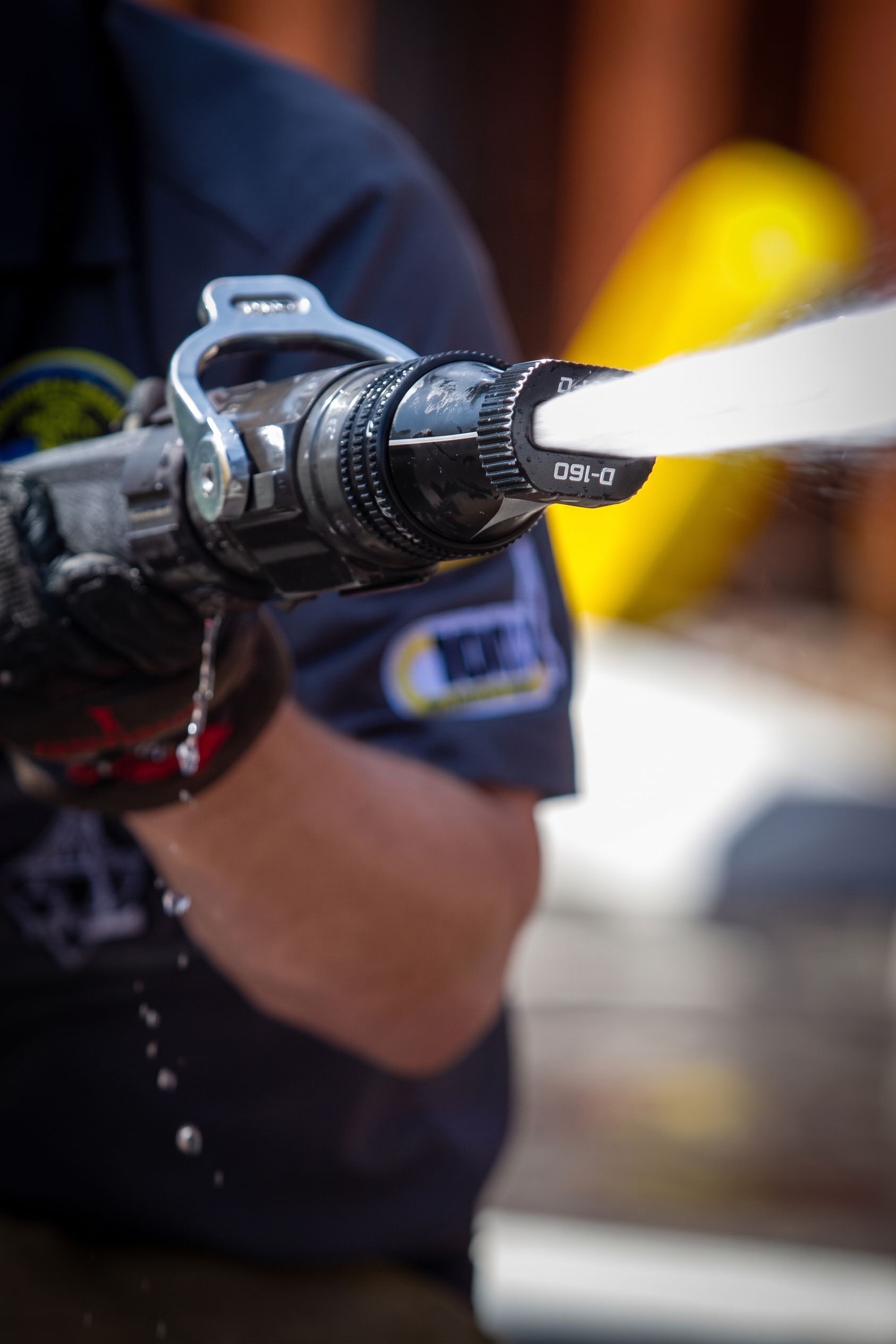

The D-160 Nozzle Tip is a two piece, maintenance free design sized for a 7/8" smooth bore. It stacks directly onto an integrated 7/8" smooth bore shut-off, or mounts on a full shut-off on top of a 7/8" threaded nozzle tip such as the S-160. The D-265 Nozzle Tip is a two piece, maintenance free design sized for a 1 1/8" smooth bore. It stacks directly onto an integrated 1 1/8" smooth bore shut-off, or mounts on a full shut-off fitted with exposed threads on a 1 1/8" tip. The S-160 is a traditionally designed, tapered 7/8" smooth bore nozzle tip made to pair with the D-160 on a full 1 1/2" or 1 3/8" shut-off. Its taper reduces turbulence for a smoother stream, and it can be used on its own with the D-160 removed for maximum reach.

Innovative Design

Engineered with Computational Fluid Dynamics, the stream pattern is optimized for residential fires to deliver both reach and coverage. A patent pending waterway with a conical entry, reverse taper and rectangular exit shapes every drop.

Enhanced Coverage

Its smooth bore FLAT stream pattern increases surface area and discharges LARGE water droplets that hold their reach and penetration, delivering enhanced coverage ideal for compartmentalized firefighting.

Reliable Performance

Precision machined on a 5-axis CNC from a single block of 6061 aluminum, this nozzle has no moving parts, adjustments or settings once attached, so the only action needed in the fire environment is opening or closing the bale.
